DigidownRDL 4G+GPS

Tachograph and driver card download system that runs in the background.

Overview

Specifications

Support

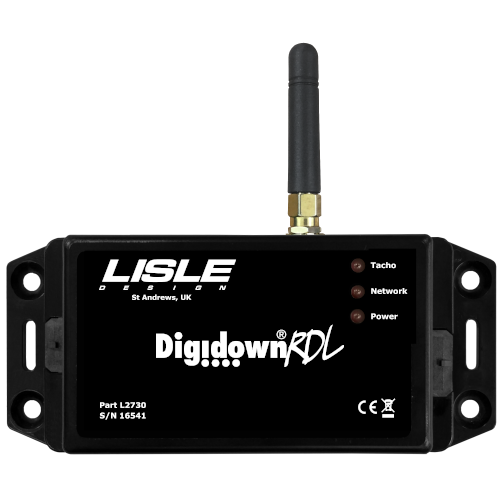

DigidownRDL 4G+GPS is a location, tachograph and driver card download system that runs in the background.

Never have to manually download a driver card ever again.

Features

  • Easy to install. It only takes 5 minutes to have it up and running (watch on YouTube).
  • GPS Location. Locate every vehicle without any extra devices, all from the same place.
  • Smart2v2 Ready. Fully compatible with all tachographs. Updates for future tachograph compatibility included. That's our promise.
  • Don’t miss a single day. Download all driver cards as soon as they are inserted in the tachograph or as often as you want.
  • Hyper Card range compatible. Handling different companies was never so easy. Host as many cards as you need without limitations. Check the Hyper Card Rack™ range here.
  • Access real time data. Driver identity, current driver activity and driving time notifications.

Benefits

  • Schedule your downloads to suit business needs. Get your tachograph downloads daily, weekly or monthly.
  • Send the data wherever you need it to go. Receive your data automatically in your email inbox or send them straight to your analysis bureau.
  • Flexible. Download all or part of the data stored in the tachograph including activities, events, faults and detailed speed
  • Secure. Encrypted communications.
  • Made in the UK. We will ensure that your partnership with us is a success at every stage.
  • Universal. Works with all makes of digital tachographs.

Contact us for purchase info

Specifications

Details

System Output: Tachograph FilesVU Files
Driver Card Files
System Output: Real Time Data (D8)VDO Counter
Stoneridge Driver Decision Support
Size125 x 25 x 101 mm
Weight72g
Voltage12V/24V
Power ConsumptionActive @24V->140mA @12V>280mA
Sleeping @24V>2mA @12V>4mA
SecurityEncrypted communications
SIM Connectivity4G
Global Navigation Satellite SystemGPS, GLONASS, Galileo, BDS, QZSS and SBAS
Product conformitySafety: EN 60950
RF: EN 301 511
EMC: EN 301 489-1
EMC: EN 301 489-52
EMC: EN 55032
EMC: EN 55024/55035
Tacho CompatibilityVDO 1.3a onwards or Stoneridge 7 onwards
Optional AccessoriesDigidownRDL Button

Included in the box

  • DigidownRDL device
  • Antenna
  • Comprehensive Cable Kit or Front Panel Cable Kit
  • Quick Installation Guide
