The Bottleneck Of Scalable SIM Testing

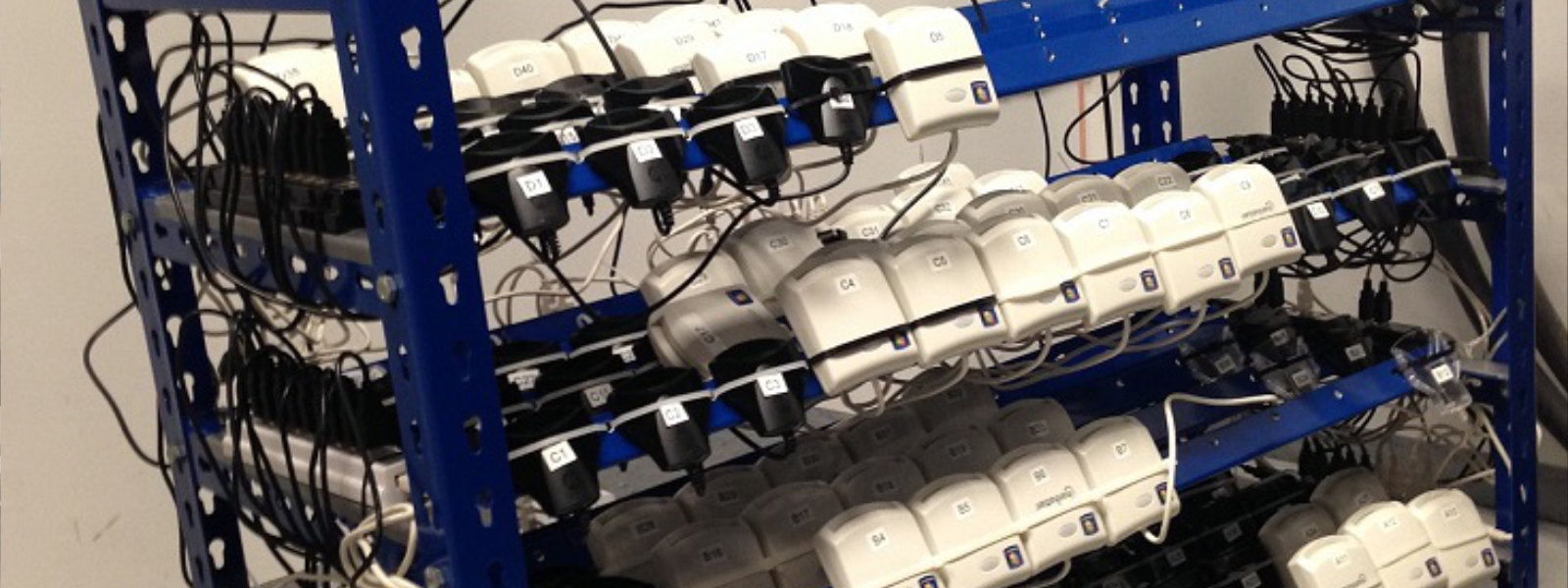

If you have ever tried to build a DIY SIM farm using consumer-grade USB hubs and standard smart card readers, you have likely hit a wall that doesn't seem to make sense. You plug in 20 readers, but the operating system only recognises 10. Or worse, the system boots, but connections drop randomly under load.
This isn't usually a hardware defect; it is a fundamental limitation of the USB protocol.
Why Standard USB Hubs Fail At Scale
Most engineers know the theoretical limit of USB is 127 devices per controller. However, this number is misleading in a real-world test lab.
When teams build SIM farms or large smart card test systems, they often assume scaling is simple: add more hubs, plug in more readers, done. The hardware looks fine. Bandwidth looks fine. Power looks fine.
Then the system stops enumerating devices.
On Windows, the failure happens early and bluntly. The OS enforces a hard limit of 10 smart card readers per system. The eleventh reader won't load. No warning during design. No graceful degradation. Just a hard ceiling at the device-class level.
On Linux, you don't hit a 10-reader cap, but you still hit a wall. USB host controllers (xHCI) have finite endpoint and scheduling resources. Every smart card reader consumes them. Once those controller resources are exhausted, enumeration fails with “not enough resources” errors, even if you still have open ports on your hubs.
The Nightmare of Dynamic Device IDs
Beyond the endpoint limit, standard USB architecture introduces chaos into automation scripts.
When a standard Linux or Windows machine reboots, it enumerates USB devices in the order they respond. If Smart Card Reader "A" responds faster today than it did yesterday, it might grab COM4 instead of COM3.
For automation engineers, this is catastrophic. Your test scripts are hard-coded to expect specific SIMs at specific addresses. When device IDs shift, scripts fail, validation data is corrupted, and engineers spend hours manually re-mapping ports instead of testing network performance.
The Solution
Hyper SIM devices host multiple physical SIM cards over a single USB connection, removing the usual operating system USB bottlenecks that appear in high-density test environments.
Using the Hyper Driver on Windows and Linux, engineers can scale from small desktop setups to thousands of SIM cards on a single CPU without changing tooling or workflows.
Key principles behind Hyper SIM:
- Predictable, stable SIM reader IDs
- All SIMs available concurrently
- Designed for continuous operation and automation
- Built for test labs, not consumer use
Hyper SIM Models
The Hyper SIM range is available in three physical formats. All models are technically identical; the difference is simply how many SIMs they host and how they are deployed.

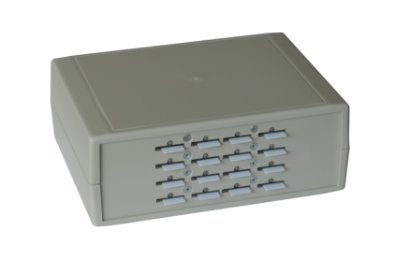

Hyper SIM 16 for Desktop
A compact desktop unit hosting 16 SIM cards, ideal for:
- Development environments
- Proof-of-concept testing
- Small-scale validation labs

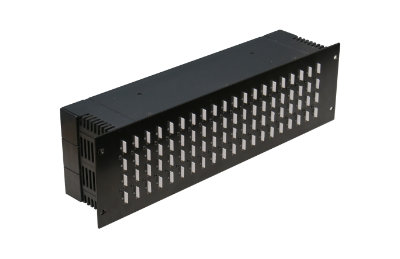

Hyper SIM 80 for Racks
A rack-mountable solution hosting 80 SIM cards, designed for:
- Dedicated test racks
- Shared lab infrastructure
- Medium-scale SIM testing operations

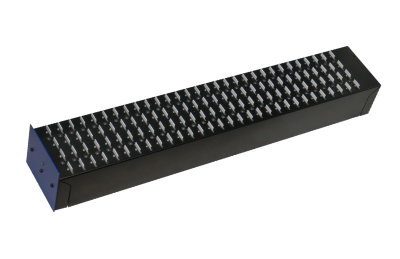

Hyper SIM 120 for Racks or Desktop
The highest-density unit in the range, hosting 120 SIM cards per system.
Multiple Hyper SIM 120 units can be combined. For example, four units forming a 480-SIM configuration while maintaining a clean USB architecture and consistent performance.
Why Hyper SIM for SIM Testing Hardware?
No USB Limitations
Host hundreds -or thousands- of SIM cards using a single CPU on Windows or Linux, without hitting OS USB device limits.
Scalable By Design
Add modules as your testing requirements grow. The same architecture works from 16 SIMs to 1,000+.
Stable Reader IDs
Whether it's critical for automation, scripting, and long-running test scenarios, each SIM reader always maintains a consistent ID.
Hot-swappable SIMs
Replace SIM cards while the system is live, with no downtime.
Rack-friendly Footprint
A drawer containing four modules fits into a standard 19-inch rack, occupying 3U of space.
Flexible Deployment
Modules can be:
- Rack-mounted
- Used on a desk
- Wall-mounted where rack space isn't available
Optional Standalone Operation
An optional Raspberry Pi can be fitted, creating a fully standalone SIM testing solution.
Designed for Engineers
Hyper SIM is supported by a fully documented development environment and driver stack:
Telephone and email support is available throughout development and production, ensuring test environments remain stable and predictable.
Is Hyper SIM Right for You?
Hyper SIM is typically used for:
- SIM testing and validation
- Network testing in lab environments
- Automation and long-running SIM scenarios
- Pre-deployment testing for mobile network operators
If you're unsure which configuration fits your environment, or how many SIMs you should host per system, we're happy to help.
Get in Touch
If you're planning a multi-SIM test environment or need confirmation that Hyper SIM is the right solution for your setup, contact us for guidance and a custom quote.
Email: business@lisledesign.com
Our engineers can review your requirements and recommend the most suitable Hyper SIM configuration for your lab.
